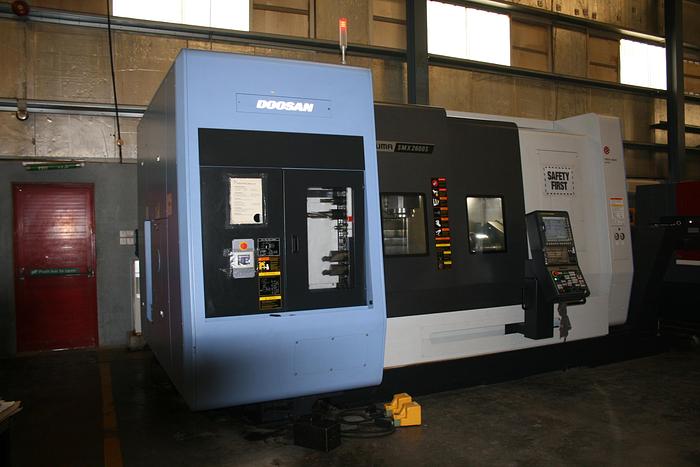

USED CNC TURNING & MILLING CENTER MANUF. DOOSAN, MODEL SMX 2600 S

Swing over bed 660 mm

Swing over saddle 660 mm

Max. machining dia. 660 mm

Max. turning length 1540 mm

Max. workpiece weight 260 kg

Bar working dia. 81 mm

Left/right spindle speed 4000 rpm

Spindle speeds (milling spindle) 12000 rpm

Axis movements:

X1 - 630 mm

Z1 - 1585 mm

Y - 300 (+/- 150 mm)

A - 1605 mm

B - 240 (+/- 120 mm) (increment 0,0001 mm)

C1/C2 - 360 deg.

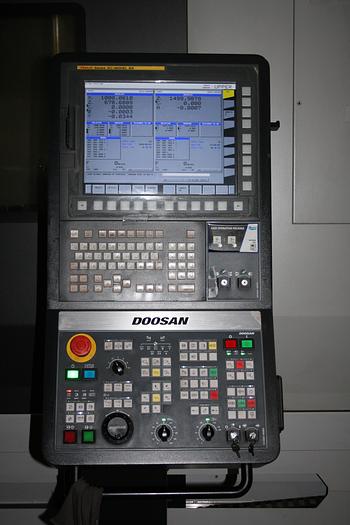

Control:

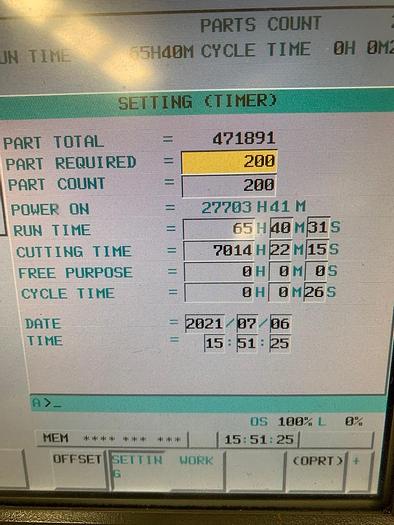

Fanuc 31i Series

Machine configurations include:

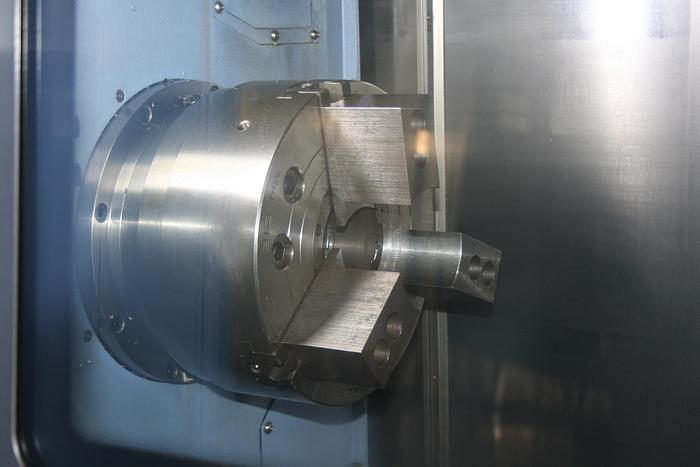

Main / left chuck – 2 set – Size 305 mm (12”) Right & left

Chip bucket – 1 set – rotation type 220L

Chip Conveyor – 1 set -hinged belt right side

Bar feeder interface – 1 set

Chuck coolant – 2 set – right & left spindle

Hardened & ground hard jaws – 1 set

Oil skimmer- 1 set – belt type

Air conditioner – 1 set

Workpiece ejector coolant – 1 set

Steady rest_SLU4Z with preparation – 1 set – Servo driven Z moving attach hyd D30_245

Coolant pump for mill. Spindle – 1 set – 1.5 kW 2.0 mpa built-in filter

CE regulation – 1 set
