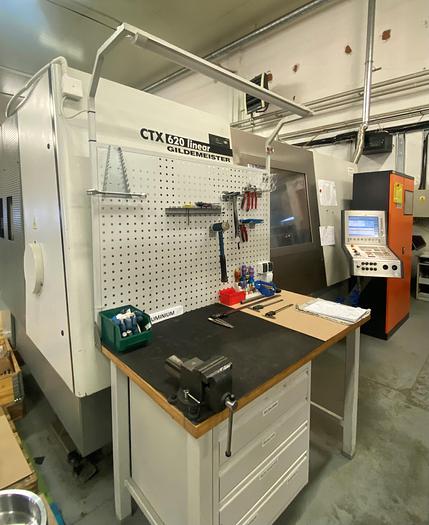

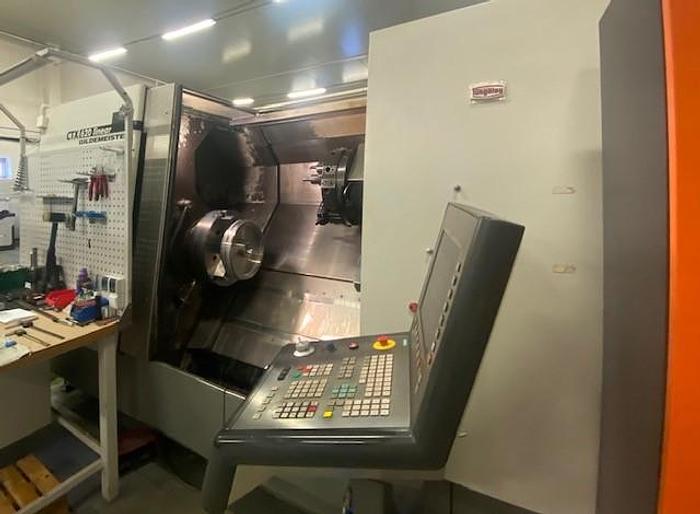

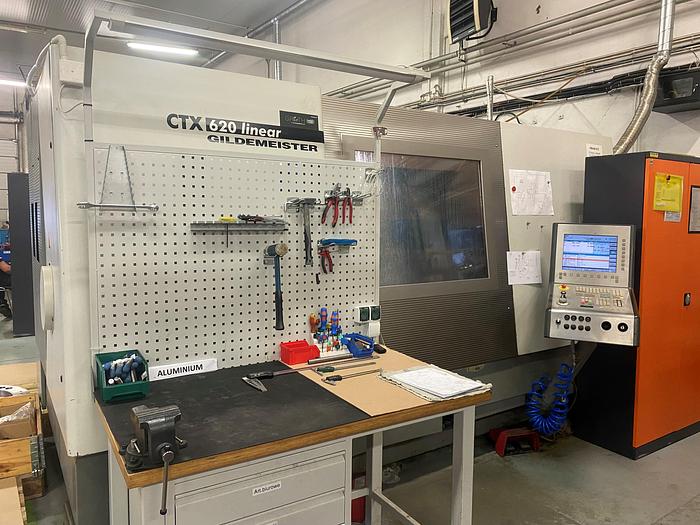

USED CNC-TURNING & MILLING CENTER MANUF. GILDEMEISTER, MODEL CTX 620 LINEAR

Turning length – 600 mm

Turning Ø – 680 mm

Ø above the bed – 800 mm

Ø above transversing slide – 500 mm

Length between centers – 600 mm

X-axis – 160 mm

Z-axis – 635 mm

Spindle taper - VDI 40

Spindle bore - 136 mm

Number of turrets - 12

Number of tools on turret - 12

Number of rotating tools - 12

Spindle speeds 5000 rpm

Spindle motor power – 25 kW

Tailstock

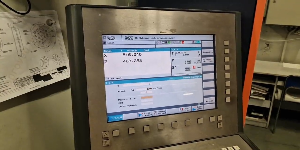

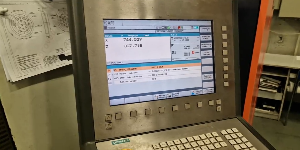

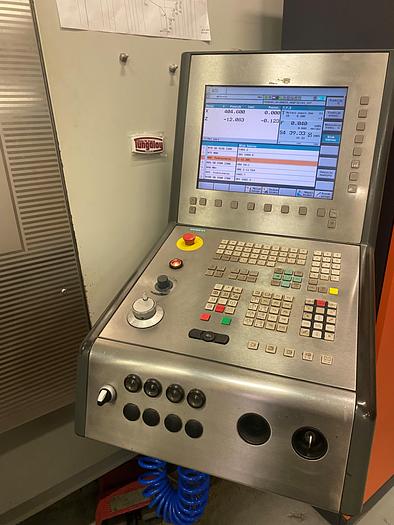

Control:

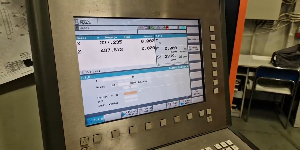

Siemens Sinumeric 840 D (w/shopturn)

Equipped with:

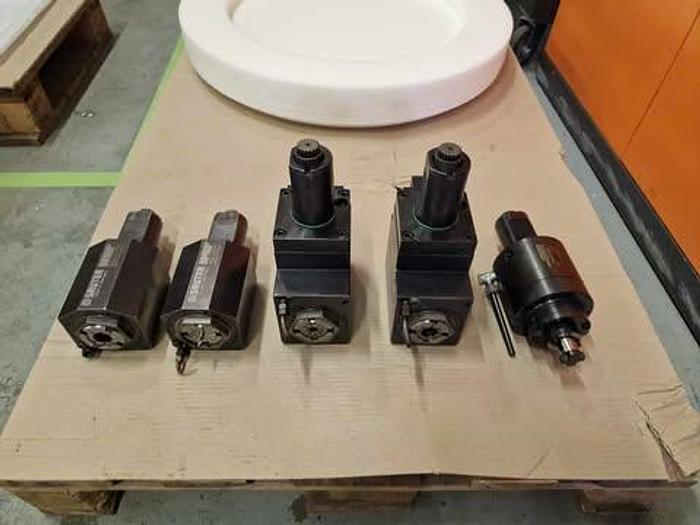

2 straight rotating tools

2 angle rotating tools

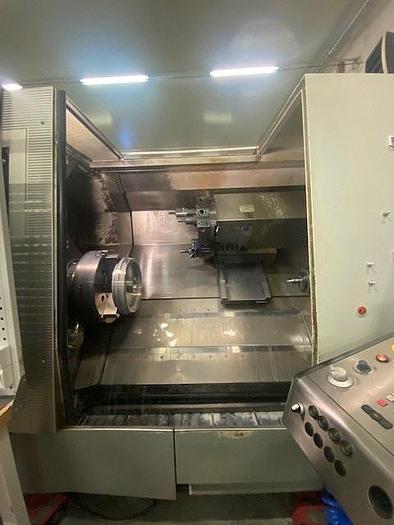

3-jaw chuck 510 mm
